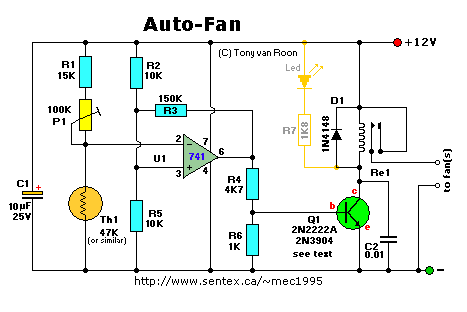

Automatsko paljenje ventilatora
Automatsko paljenje ventilatora
| IC1 | LM741 Op-Amp | 276-007 | LM741CN-ND | LM741CN | NE741,µA741, etc. |
| Q1 | 2N2222A transistor | 276-2009 | 2N2222A-ND | 2N3904 | See text |
| D1 | 1N4148 Diode | 276-1122 | 1N4148GICT-ND | 1N4001 | 1N4001, or others |
| Th1 | 50K Thermistor | KC005T-ND | 96F3309 | KC005T in prototype | |
| Re1 | 12V Relay | 275-249 | Z753-ND | 83F8057 | RS is 1A |
| R1 | 15K, 5% resistor | 84N2487 | brown-green-orange | ||
| R2,R5 | 10K, 5% resistor | 84N2479 | brown-black-orange | ||
| R3 | 150K, 5% resistor | 84N2485 | brown-green-yellow | ||
| R4 | 4K7, 5% resistor | 271-1330 | 50N1628 | yellow-purple-red | |
| R6 | 1K, 5% resistor | 271-1321 | 50N6012 | brown-black-red | |
| R7 | 1K8, 5% resistor | brown-gray-red | |||
| P1 | 100K Trimmer Pot | Bourns | |||
| C1 | 10uF/25V Capacitor | Electrolytic | |||
| C2 | 0.01uF, Capacitor | Ceramic | |||
| Led | Red, 3mm | Light Emitting Diode |
Maksimalna amperaža je 10ampera.
Zamjenski dijelovi:
Q1 = 2N3053, 2N3904, NTE123A, ECG123A, NTE128, ECG128, etc.
D1 = 1N4001, NTE519, ECG519, NTE116 etc.
Th1 = Thermistor, 22K – 100K. Used 50K in prototype.
Re1 = Relej tip 842-1C-C (ovisno o potrebi)
Izvor: tonys website
